Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant

  • Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant
  • Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant
  • Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant
  • Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant
  • Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant
Menşe yeri Çin
Marka adı FABIA
Sertifika ISO9001,BV,CCS,DNV
Model numarası 2 inç ～ 87 inç
Belge Ürün Broşürü PDF
Min sipariş miktarı 1 set
Fiyat pazarlık edilebilir
Ambalaj bilgileri Karton/Ağaç kasalar
Teslim süresi 15-30 iş günü
Ödeme koşulları L/C, D/A, D/P, T/T, MoneyGram, Western Union
Yetenek temini Haftada 100-1000 set

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Ürün Adı Pnömatik Yüksek Sıcaklık Duman Kelebek Vanası Vana Uygulaması havalandırma
Vana malzemesi Paslanmaz çelik Valf Bağlantısı flanşlı
Vana Çalışması Pnömatik Vana Sertifikasyonu BV,DNV,CCS
Valf Basıncı ≤0.25MPa Valf Contası Paslanmaz çelik
Valf Boyutu 2-87 inç Valf Sıcaklığı 500°C
Vana Tipi Kelebek
Vurgulamak

Yüksek sıcaklıklı duman kelebek valfi

,

Elektrik santrali duman kelebek valfi

,

Termal Elektrik Santrali Duman Kelebek Valfi
Mesaj bırakın
Ürün Açıklaması

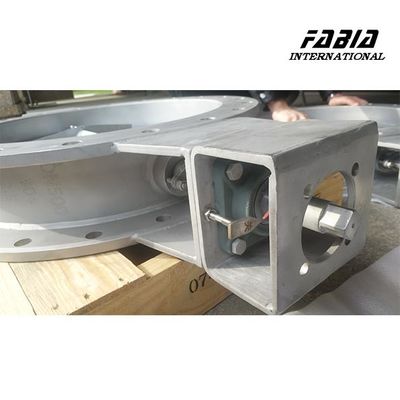

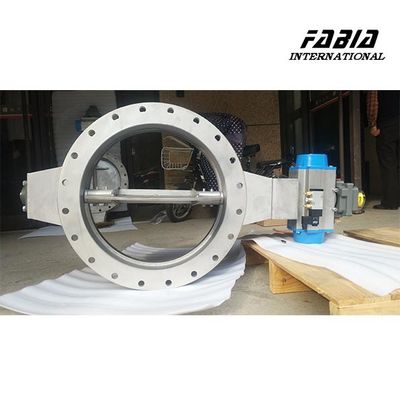

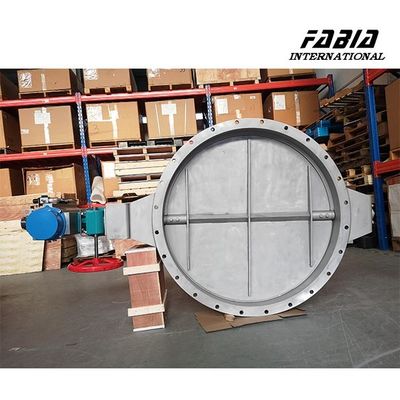

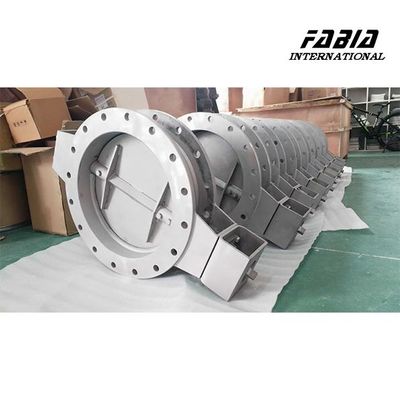

Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant

1. Description:

In the Marine field, FB-D-73 series butterfly valves are mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen

oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.

In addition, FB-D-73 series butterfly valves have also been widely used in the road industry, such as steam desorption ads- orption pipes in VOCs and some other gas pipelines that require strict leakage rates.



2. Specification:



FABIA Valve Parameter List
Valve type: Flange type heavy-duty ventilation butterfly valve
Size: 2inch ～ 87 inch
Material:

316/316L/304/304L/ Corten
Connection type: Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: ≤0.25Mpa
Temperature: -≤500℃
Model: FB-D-73..........



3. Features:



  • three eccentric structure,wideoblique valveseat design
  • Suitable for low pressure air or other gas flow, pressure control and high temperature gas
  • Zero air leakage
  • CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
  • Strong Corrosion Resistance: Manufactured with high-quality corrosion-resistant materials, suitable for harsh operating environments.
  • Precise Control: High-precision control system ensures accurate adjustment of gas flow.
  • Excellent Sealing: Well-designed sealing structure reduces leakage rate.
  • Fast Response: Quick opening and closing enhance system response speed.
  • Simple Structure: Easy maintenance minimizes downtime.
  • High Temperature Resistance: Able to withstand high-temperature conditions reliably.



 Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant 0Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant 1Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant 2
