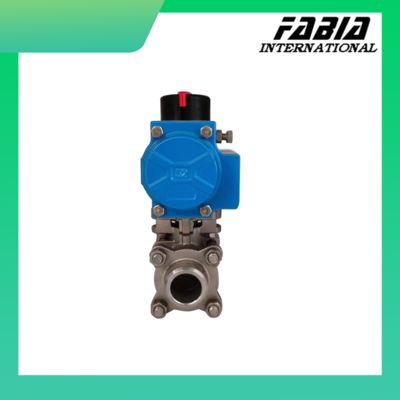

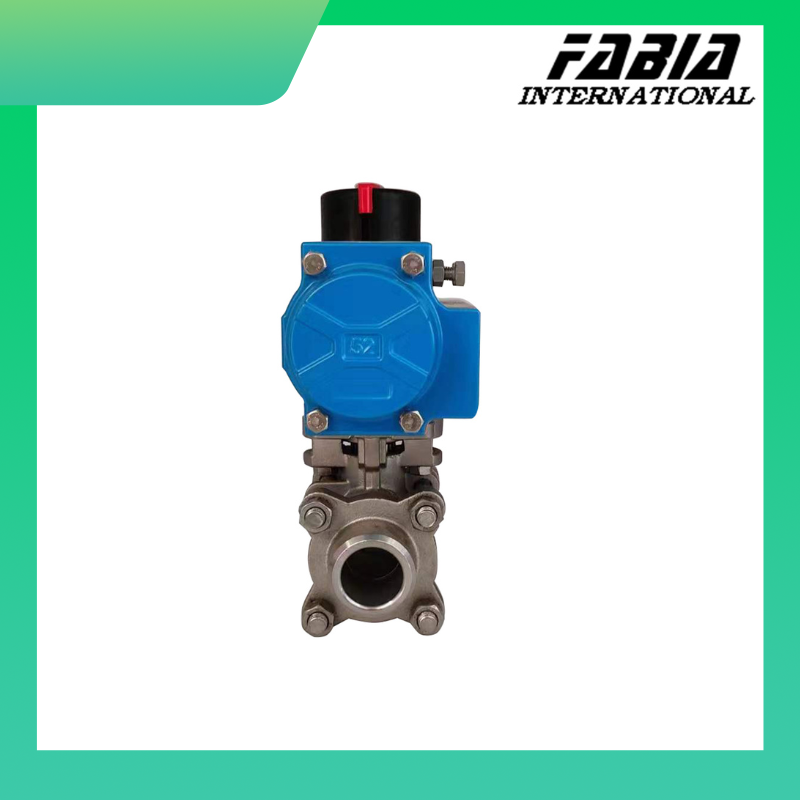

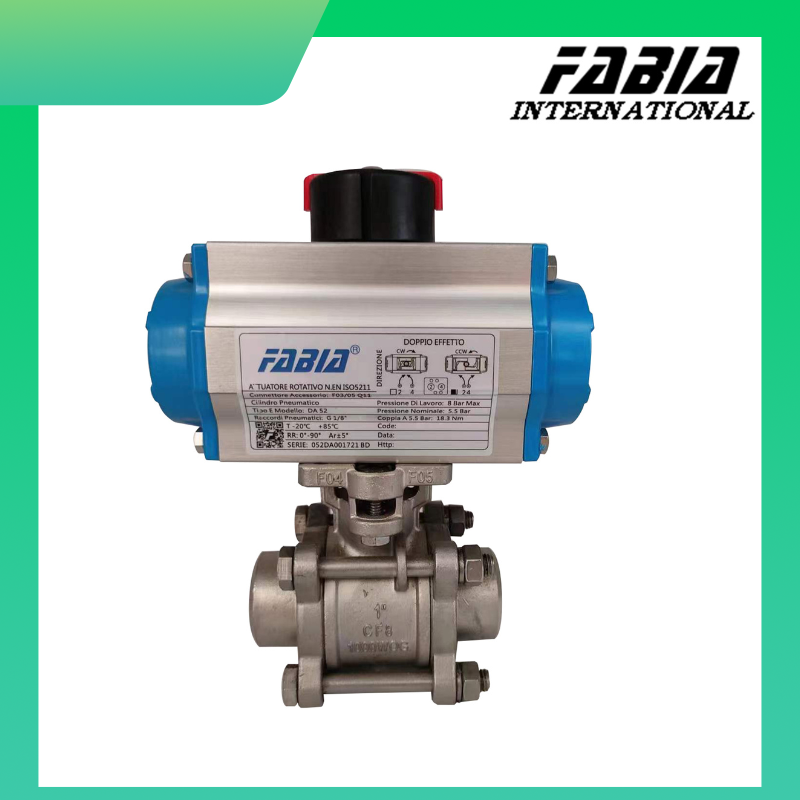

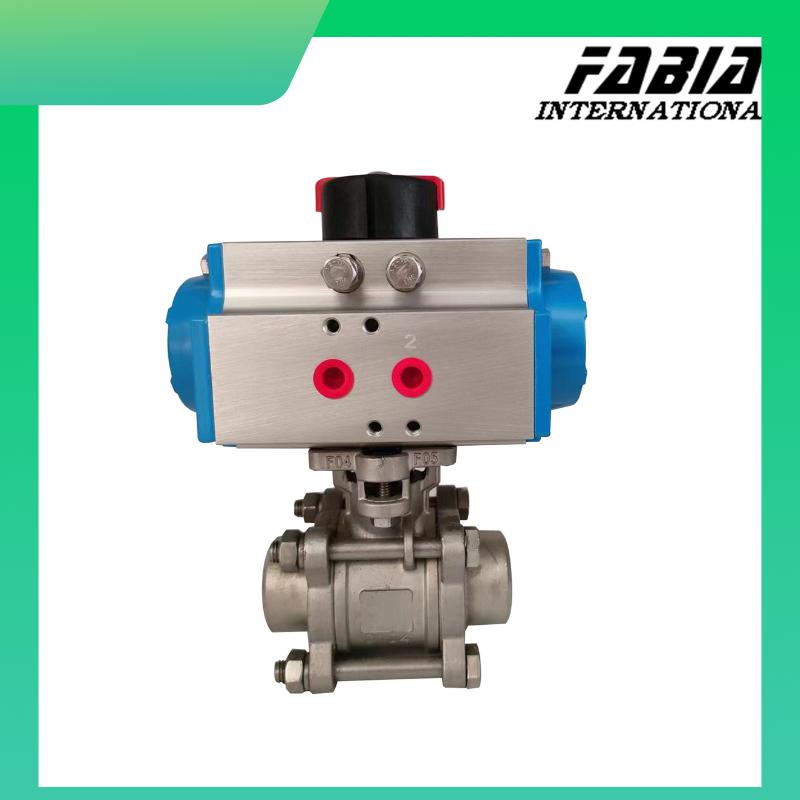

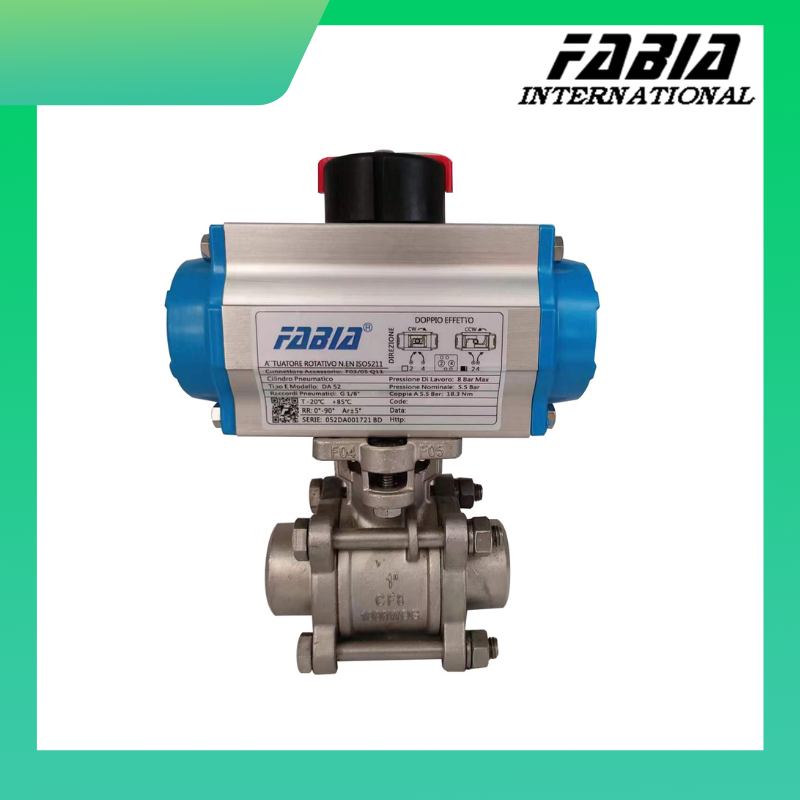

Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal
| Menşe yeri | ÇİN |
|---|---|
| Marka adı | FABIA |
| Sertifika | ISO9001,CE,CCS,DNV |
| Model numarası | 1/8 inç ～ 36 inç |
| Belge | Ürün Broşürü PDF |
| Min sipariş miktarı | 1 set |
| Fiyat | pazarlık edilebilir |
| Ambalaj bilgileri | Karton/ahşap kılıflar |
| Teslim süresi | 15-30 iş günü |
| Ödeme koşulları | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Yetenek temini | Haftada 100-1000 set |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Valf malzemesi | Paslanmaz çelik | vana kontrolü | Pnömatik |
|---|---|---|---|
| Valf bağlantısı | Dişli | Ürün adı | Pnömatik Paslanmaz Çelik Küresel Vana |
| Valf basıncı | PN16-40 | Valf tipi | Pnömatik küre valfi |
| Valf sıcaklığı | -20 ℃ ~+150 ℃ |
Ürün Açıklaması
FABIA Stainless Steel Pneumatic Ball Valve Air Actuated Two Way Internal Tooth
1. Description:
Characteristics of pneumatic internal ball valve: angular stroke output torque, open quickly, stable and reliable, widely used.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Stainless Steel Pneumatic Ball Valve Air Actuated Two Way Internal Tooth | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, pneumatic ball valve is one of the least fluid resistance in all valve classes, even if it is a reduced pneumatic ball valve, its fluid resistance is quite small.
- Thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
- Sealing performance of the seat is good, the sealing ring made of polytetrafluoroethylene and other elastic materials is easy to seal, and the sealing capacity of the pneumatic ball valve increases with the increase of the medium pressure.
- Valve stem seal is reliable, because the valve stem is only as if rotating without lifting movement, the packing seal of the valve stem is not easy to destroy, and the sealing capacity increases with the pressure of the medium.
- Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss of the ball is small, so the service life of the pneumatic ball valve is long.
- Anti-static function: set the spring between the ball, valve stem and valve body, which can export the static electricity generated by the switching process.
- Lower mounted valve stem and valve stem head convex step to prevent the valve stem ejecta, such as fire caused by the valve stem seal damage, the convex step and the valve body can also form metal contact to ensure the valve stem seal.
