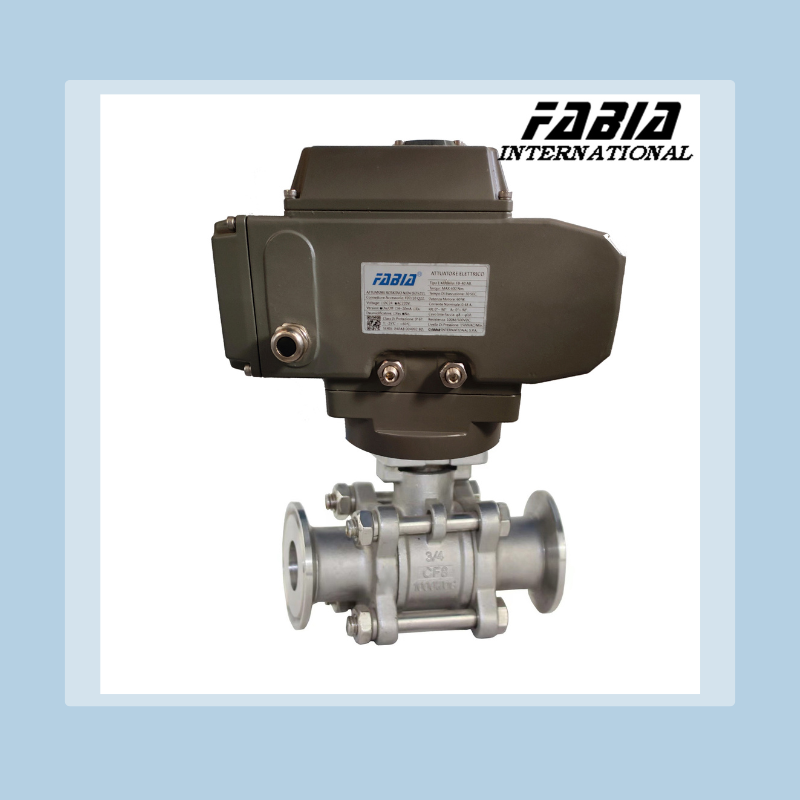

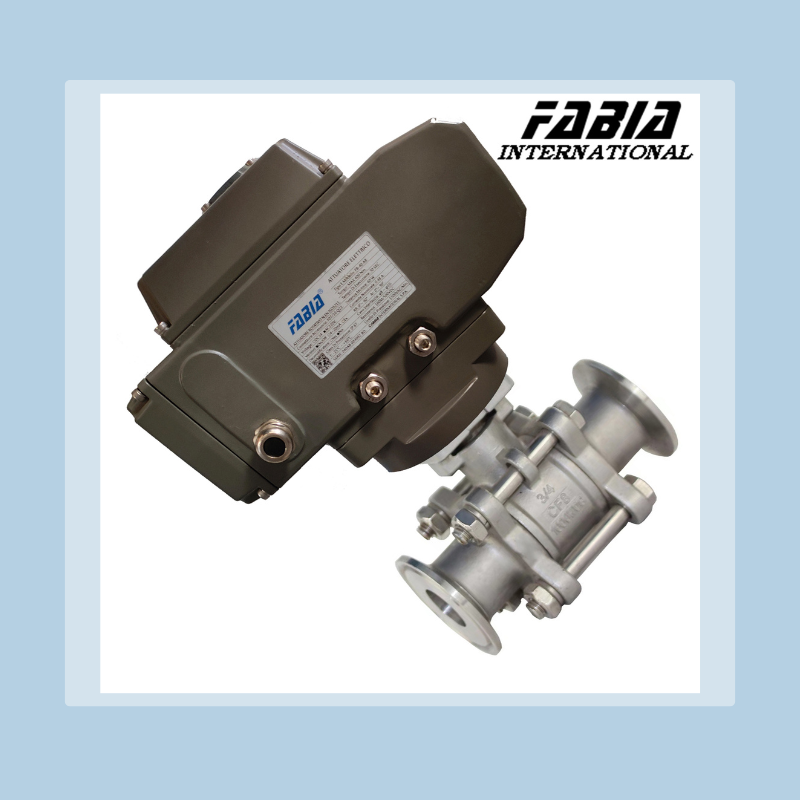

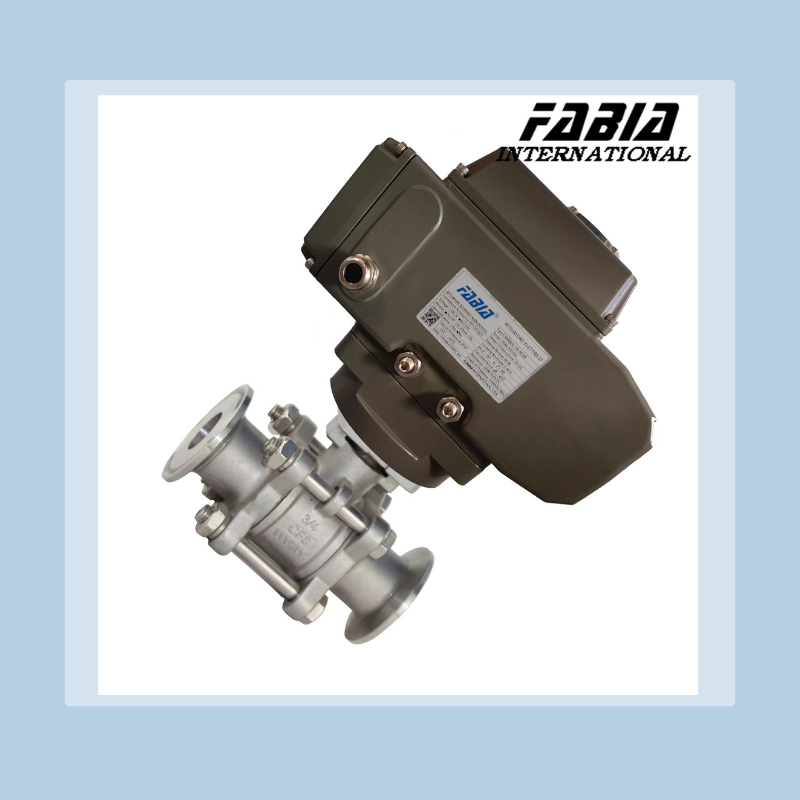

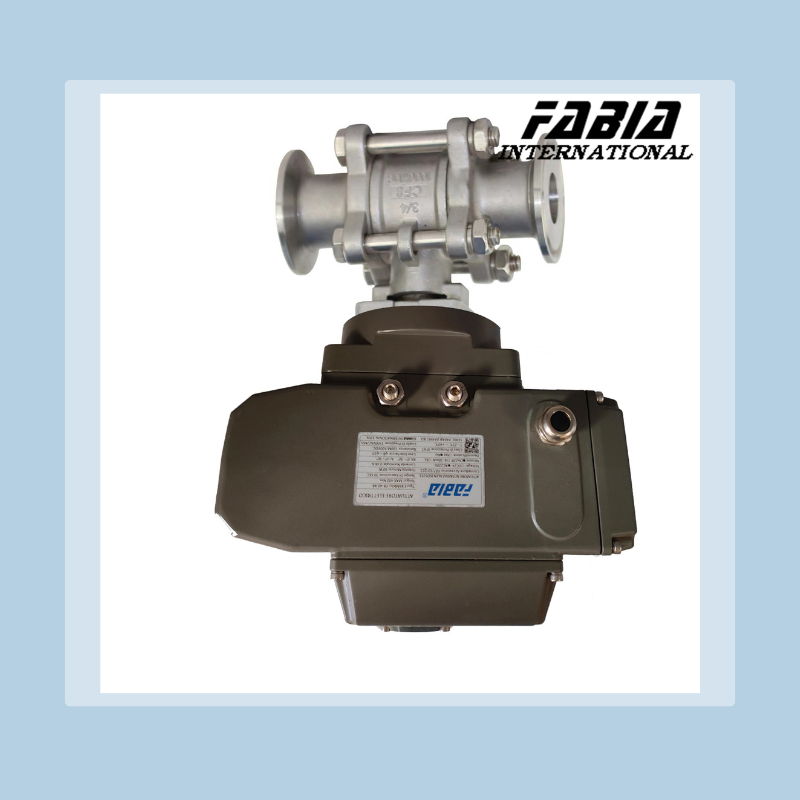

Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient

  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
Menşe yeri ÇİN
Marka adı FABIA
Sertifika ISO9001,CE,CCS,DNV
Model numarası 1/8 inç ～ 36 inç
Belge Ürün Broşürü PDF
Min sipariş miktarı 1 set
Fiyat pazarlık edilebilir
Ambalaj bilgileri Karton/ahşap kılıflar
Teslim süresi 15-30 iş günü
Ödeme koşulları L/C, D/A, D/P, T/T, MoneyGram, Western Union
Yetenek temini Haftada 100-1000 set

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Ürün adı Elektrikli Yüksek Basınçlı Üç Parçalı Küresel Vana Valf tipi Yüksek Basınçlı Küresel Vana
Valf malzemesi Paslanmaz çelik Valf çalışması Elektrikli
Valf bağlantısı Dişli Valf tasarımı 3 Parça
Valf basıncı 1000 psi Valf Basıncı Değeri Sınıf 150
Valf sızdırmazlığı Metal Sızdırmazlık Valf boyutu 1/2-8
Valf sıcaklığı 260°F Valf uygulaması Petrol, kimyasal, güç, vb.
Mesaj bırakın
Ürün Açıklaması

Electric High Pressure Three-Piece Ball Valve With Internal Teeth Precise


1. Description:


Electric high pressure three piece internal thread ball valve ball core channel can be pipe line through the ball.


Overall smooth, simple structure, good sealing performance.


Especially suitable for applications requiring zero leakage rate.


2. Specification:


FABIA Valve Parameter List
Valve type: Electric High Pressure Three-Piece Ball Valve With Internal Teeth
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........


3. Features:


  • Electric three-piece screw ball valve is small in size, and the electric three-piece ball valve is composed of three parts of the valve shell, which is formed by four longer bolts clamping the middle valve body and the valve ball from both ends.
  • Advantage is that the maintenance disassembly does not need to remove the pipe thread, and directly disassemble the four bolts, and the middle part of the valve body can be removed.
  • Working principle is also through the 90 degree rotation of the pneumatic actuator to drive the rotation of the sphere to achieve the flow and block of the medium.



Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient 0


Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient 1
