Metal High Pressure Electric Ball Valve Stainless Steel Two Way Flange Ball Valve
| Menşe yeri | ÇİN |
|---|---|
| Marka adı | FABIA |
| Sertifika | ISO9001,CE,CCS,DNV |
| Model numarası | 1/8 inç ～ 36 inç |
| Belge | Ürün Broşürü PDF |
| Min sipariş miktarı | 1 set |
| Fiyat | pazarlık edilebilir |
| Ambalaj bilgileri | Karton/ahşap kılıflar |
| Teslim süresi | 15-30 iş günü |
| Ödeme koşulları | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Yetenek temini | Haftada 100-1000 set |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Ürün adı | Elektrikli Yüksek Basınç Flanşlı Küresel Vana | Valf tipi | Yüksek Basınçlı Küresel Vana |
|---|---|---|---|
| Malzeme | Paslanmaz çelik | Ameliyat | Elektrikli |
| Bağlantı türü | Flanşlı | Koltuk | PTFE, PEEK |
| Boyut | 1/2-8 inç | Basınç derecesi | 1000-3000 PSI |
| Sıcaklık aralığı | -20 ile 120°C arasında |
Ürün Açıklaması

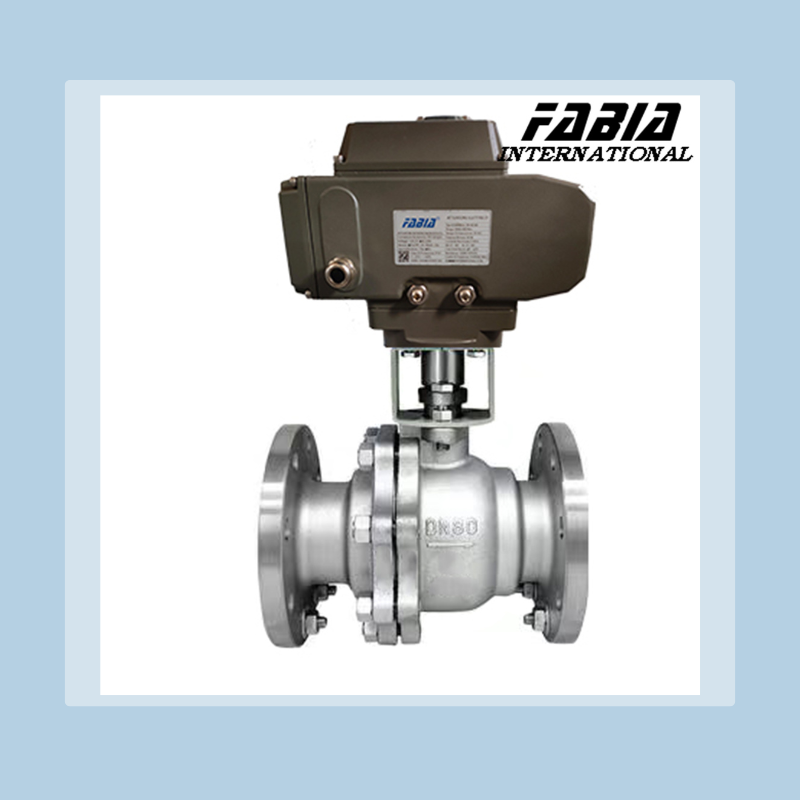

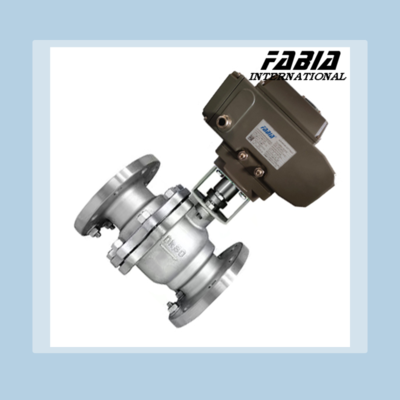

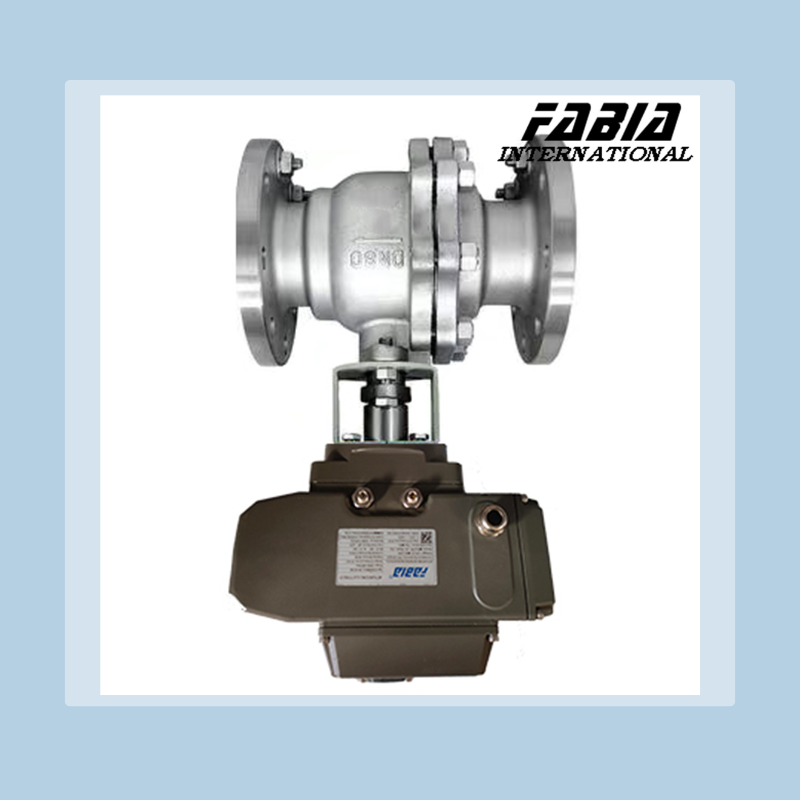

FABIA Electric High Pressure Stainless Steel Two Way Flange Ball Valve
1. Description:
Electric high pressure two-way flange ball valve: has the function of changing the medium flow, pressure and temperature, suitable for water, steam, air and other media, is one of the commonly used valves in industry, is widely used in water heating, chemical, Marine, equipment and other industries, is an intelligent control system, and is not subject to the media cleanliness, installation Angle restrictions.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Two Way Flange Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- External leakage is blocked, the internal leakage is easy to control, and the use is safe.
- Electric two-way valve is completed by electromagnetic force acting on the iron core sealed in the magnetic insulation tube, and there is no dynamic seal, so the external leakage is easy to block.
- Structure of the electric two-way valve is easy to control internal leakage until it is reduced to zero.
- Electric two-way valve itself has a simple structure and low price, and the advantages of the electric two-way valve are more obvious than that of other kinds of actuators such as regulating valves, which are easy to install and maintain.
- Action express, small power, lightweight appearance.
- Response time of the electric two-way valve can be as short as a few milliseconds, and the coil power consumption of the properly designed electric two-way valve is very low, which is an energy-saving product.
- Can also be done only to trigger the action, automatically maintain the valve position, usually no power consumption.
- Electric two-way valve is small in size, saving space, lightweight and beautiful.
- Adjustment accuracy is limited, the applicable medium is limited.
- Electric two-way valve usually has only two states of switch, the spool can only be in two limit positions, and the adjustment accuracy can not be continuousl.
