Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer

  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
Menşe yeri ÇİN
Marka adı FABIA
Sertifika ISO9001,CE,CCS,DNV
Model numarası 1/8 inç ～ 36 inç
Belge Ürün Broşürü PDF
Min sipariş miktarı 1 set
Fiyat pazarlık edilebilir
Ambalaj bilgileri Karton/ahşap kılıflar
Teslim süresi 15-30 iş günü
Ödeme koşulları L/C, D/A, D/P, T/T, MoneyGram, Western Union
Yetenek temini Haftada 100-1000 set

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Ürün adı Pnömatik Kelepçe Kelebek Vana Valf tipi Kelebek
Malzeme Karbon çeliği Vana Çalıştırma Pnömatik
Valf Bağlantı Tipi kelepçe bağlantısı Kelebek vana çapı DN15-600
Valf uygulaması Su/Petrol/Gaz Valf basıncı PN10-16
Valf contası PTFE/EPDM Valf sıcaklığı -30°C~+150°C
Mesaj bırakın
Ürün Açıklaması

FABIA  Hard Sealed Pneumatic Butterfly Valve Small Fluid Resistance


1. Description:


Butterfly valve is suitable for food. Medicine. Petrochemicals. A power plant. A steel mill. Industrial environmental protection water treatment and high-rise buildings.


Best device for regulating flow and cutting off fluid on the supply and drainage pipe.


2. Specification:


FABIA Valve Parameter List
Valve type: Small Fluid Resistance Hard Sealed Pneumatic Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........


3. Features:


  • Small fluid resistance, large effective flow area when the large diameter pneumatic disc valve is fully opened, opening and closing quickly and labor saving, the disc can be rotated 90 angles to complete the opening and closing,
  • Because the medium force of the disc hand on both sides of the rotating shaft is close to equal, and the torque generated is opposite, so the opening and closing torque is small, and a good seal can be achieved under low pressure.
  • Sealing materials of the disc valve are diacene rubber , fluororubber , food With rubber, lined with tetrafluoroethylene, the sealing performance is good, and the hard seal disc valve is a soft and hard laminated metal sheet with the heavy advantages of metal hard seal and elastic seal, and has excellent sealing performance at low temperature.

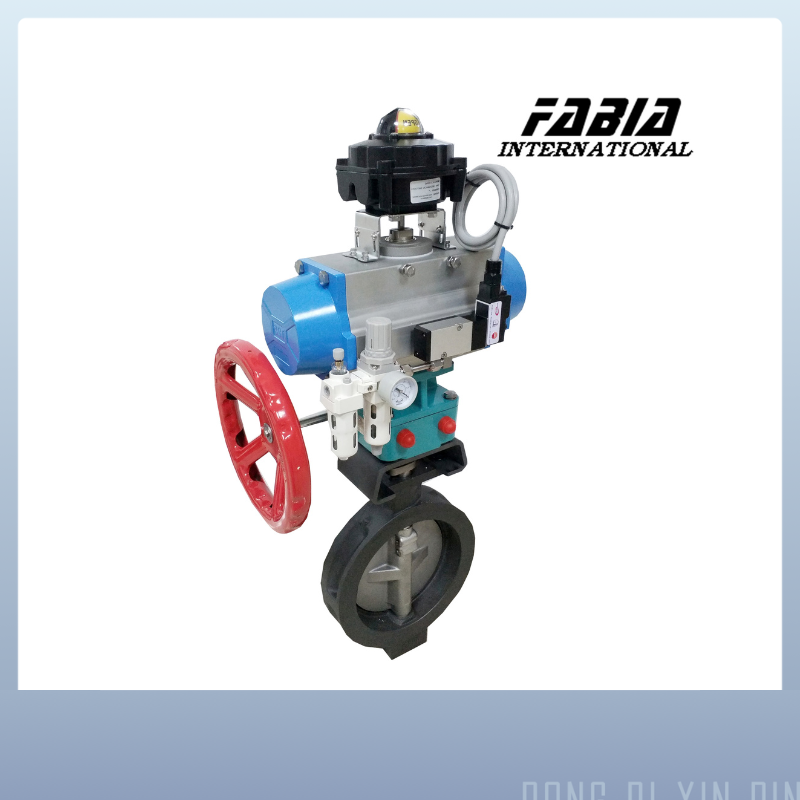

Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer 0

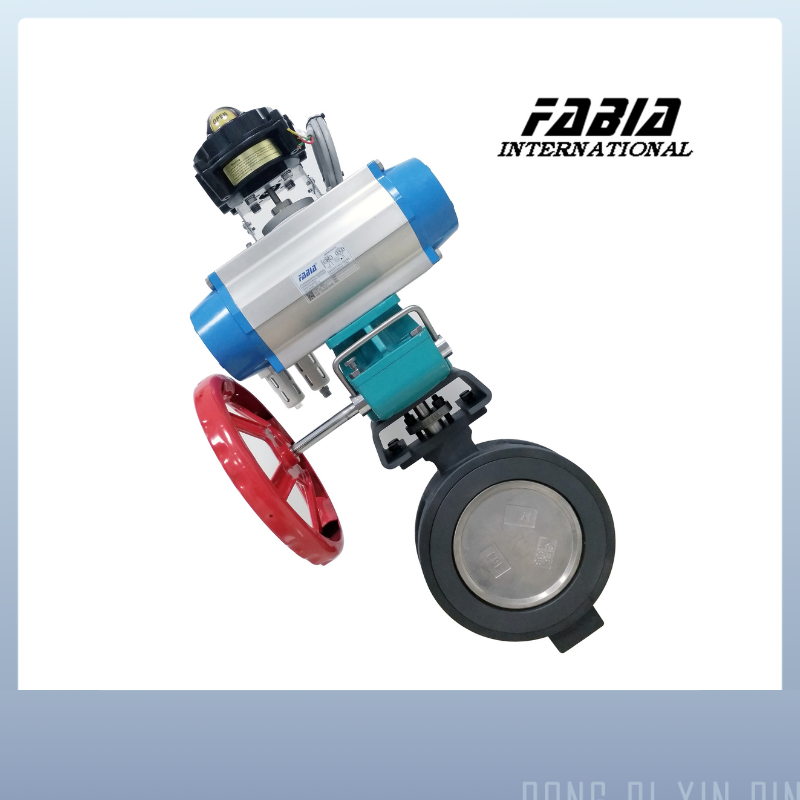

Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer 1
