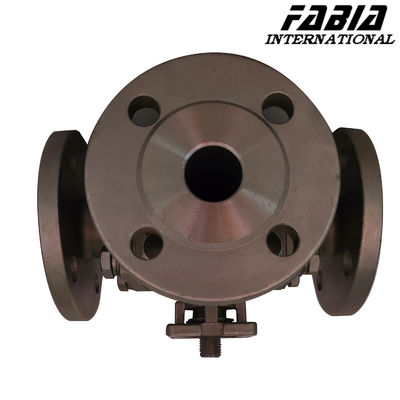

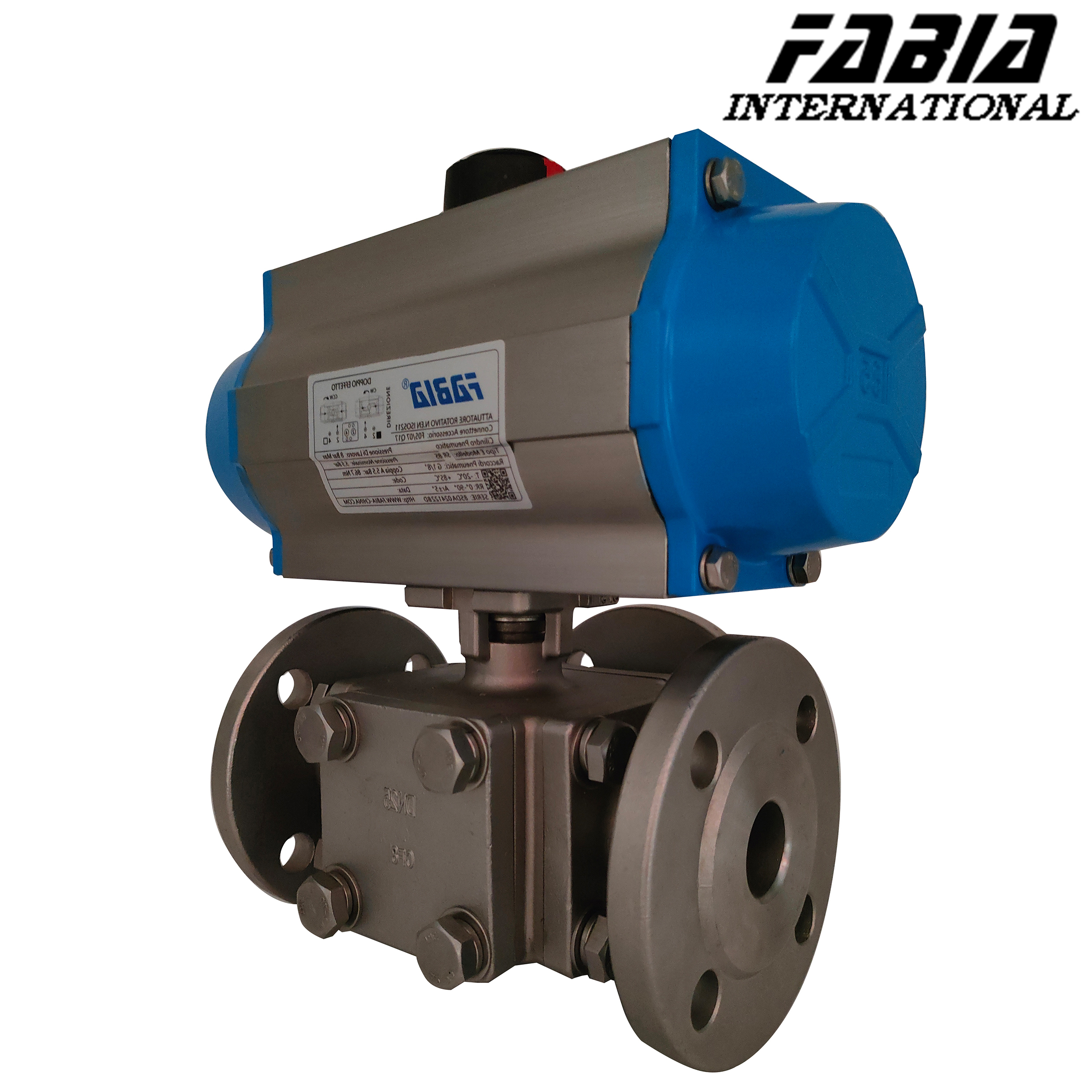

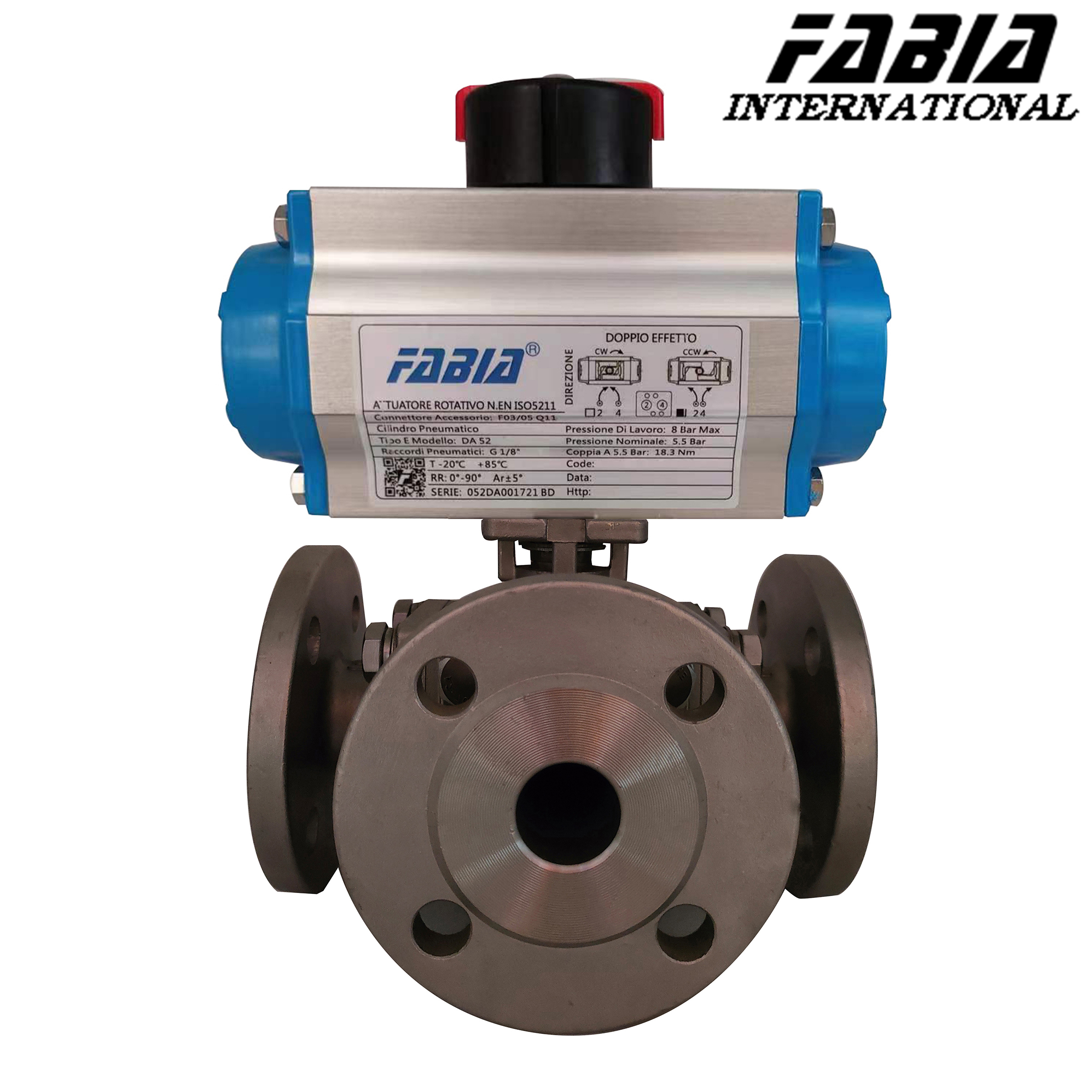

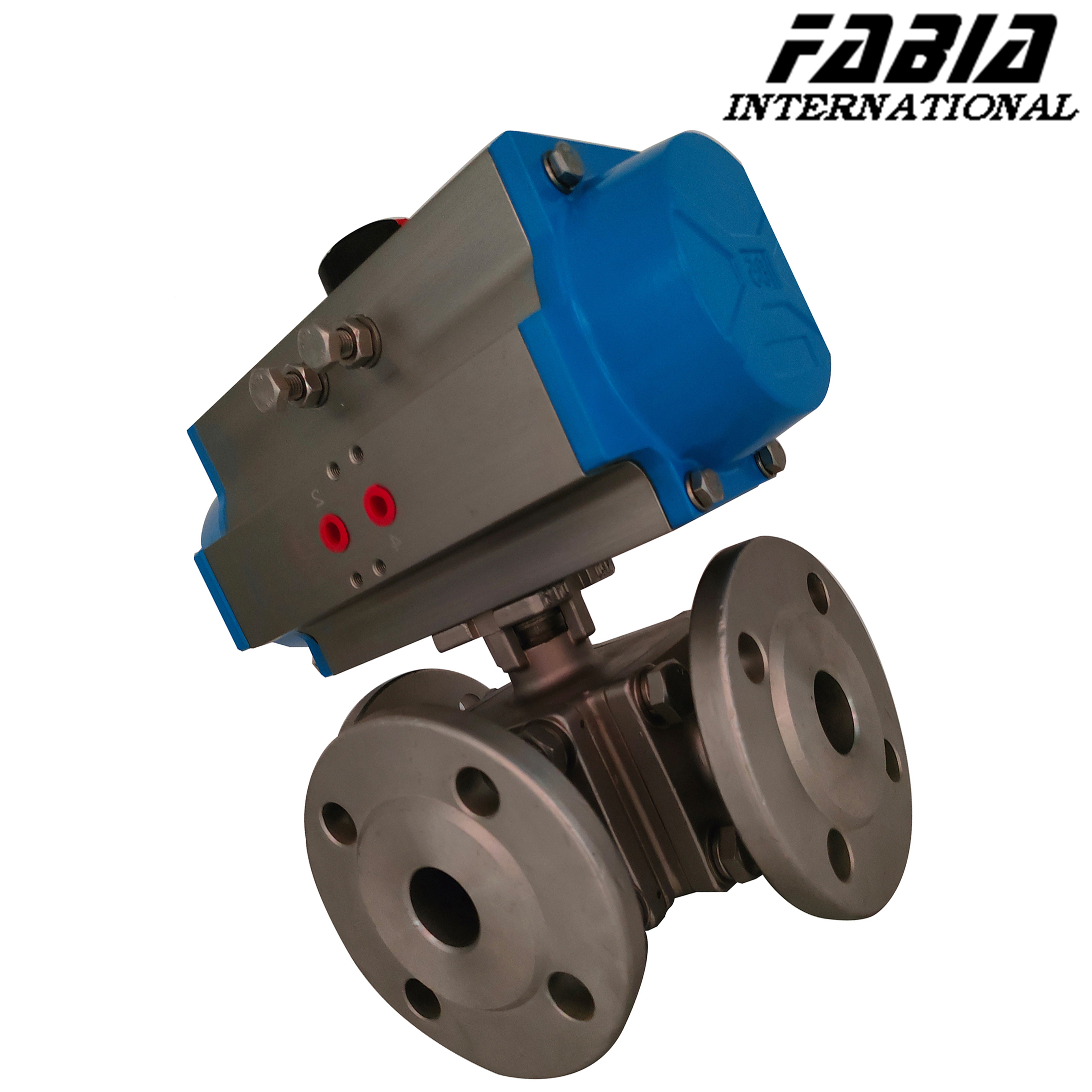

Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
| Menşe yeri | ÇİN |
|---|---|
| Marka adı | FABIA |
| Sertifika | ISO9001,CE,CCS,DNV |
| Model numarası | 1/8 inç ～ 36 inç |
| Belge | Ürün Broşürü PDF |
| Min sipariş miktarı | 1 set |
| Fiyat | pazarlık edilebilir |
| Ambalaj bilgileri | Karton/ahşap kılıflar |
| Teslim süresi | 15-30 iş günü |
| Ödeme koşulları | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Yetenek temini | Haftada 100-1000 set |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Ürün adı | Pnömatik Üç Yönlü Top Valfi | Valf tipi | Pnömatik küre valfi |
|---|---|---|---|
| Malzeme | paslanmaz çelik | Ameliyat | Pnömatik |
| Bağlantı | Dişli | Basınç | 150-600 psi |
| Aktüatör | Pnömatik aktüatör | Koltuk | Ptfe |
| Sıcaklık | -30°C~+150°C | Son bağlantı | Dişli |
Ürün Açıklaması
FABIA Pneumatic Ball Valve For Chemical, Petroleum, Electric Power
1. Description:
Pneumatic three-way ball valve, widely used in chemical, petroleum, power, food, medicine, refrigeration, aviation, aerospace and other industrial fields.
Three-way ball valve, for medium diversion, confluence, flow direction switching, any pipe can be used as an entrance or exit.
Pneumatic three-way ball valve is divided into pneumatic three-way L-type ball valve and pneumatic three-way T-type ball valve, which can meet different production process requirements.
2.Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic Ball Valve For Chemical, Petroleum, Electric Power | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- The fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
- Simple structure, small size and light weight.
- Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
- Easy to operate, open and close quickly, from full open to full close as long as the rotation is easy to control at a distance.
- When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause the erosion of the sealing surface of the pneumatic three-way ball valve when it is passed.
