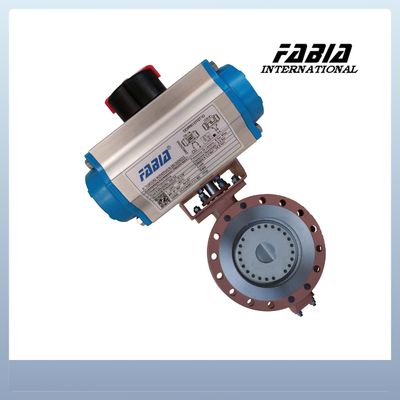

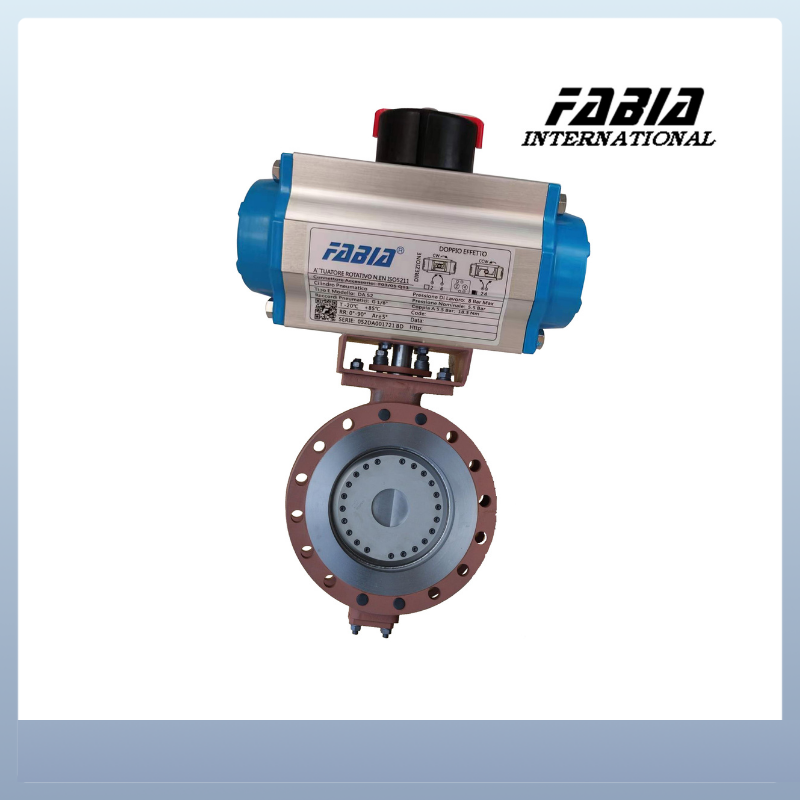

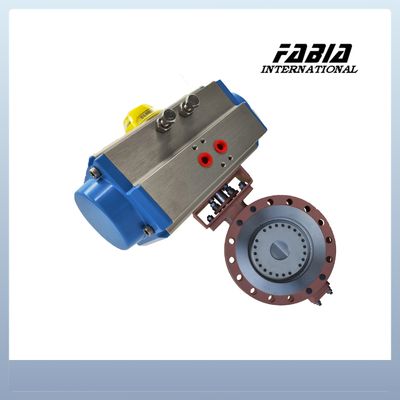

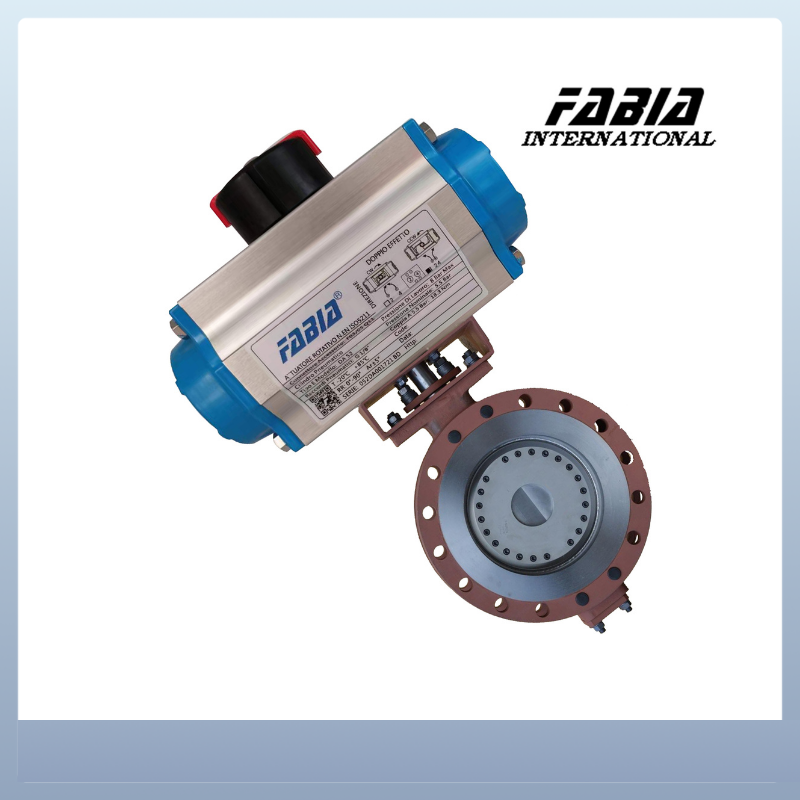

Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator

  • Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator
  • Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator
  • Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator
  • Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator
  • Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator
Menşe yeri ÇİN
Marka adı FABIA
Sertifika ISO9001,CE,CCS,DNV
Model numarası 1/8 inç ～ 36 inç
Belge Ürün Broşürü PDF
Min sipariş miktarı 1 set
Fiyat pazarlık edilebilir
Ambalaj bilgileri Karton/ahşap kılıflar
Teslim süresi 15-30 iş günü
Ödeme koşulları L/C, D/A, D/P, T/T, MoneyGram, Western Union
Yetenek temini Haftada 100-1000 set

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Ürün adı Pnömatik kelebek valfi Valf tasarımı Pnömatik üç eksantrik kelebek vana
vana kontrolü Pnömatik Valf tipi Kelebek
Valf uygulaması Petrol, Kimyasal, Güç, Vb. Valf malzemesi Ggg40
Valf çalışması Pnömatik Valf basıncı PN16
Valf sıcaklığı -30°C~+135°C
Mesaj bırakın
Ürün Açıklaması

FABIA  Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator


1. Description:


Three eccentric butterfly valve is suitable for food.


Medicine. Petrochemicals. A power plant. A steel mill.


Industrial environmental protection water treatment and high-rise buildings.


Water supply and drainage pipe is used to regulate the flow rate and cut off the fluid device.

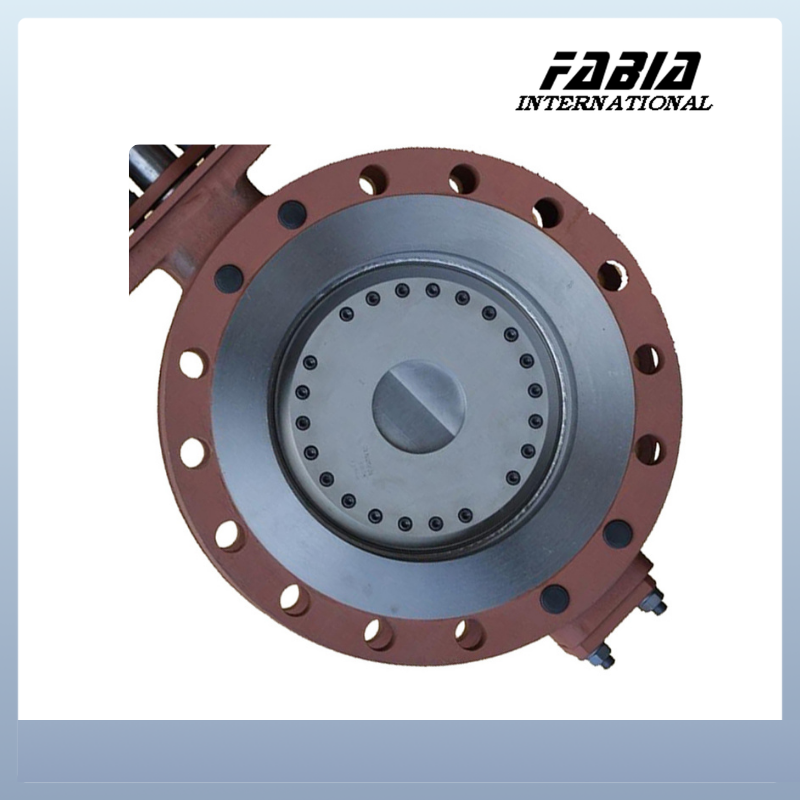

Use of three-dimensional eccentric sealing structure, small wear between the seat and the butterfly plate, and the sealing surface wear resistance, prolong the service life.


2. Specification:


FABIA Valve Parameter List
Valve type: Pneumatic Three Eccentric Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........


3. Features:


  • Small structure, light type, flexible operation, labor-saving, convenient.
  • Reliable sealing, can achieve gas seal without leakage.
  • Flow characteristics tend to be linearly regulated.
  • Three-eccentric principle is adopted to make the sealing surface approximate zero loss and extend the service life of the valve.
  • Wide range of applications. Such as: can be used for water, steam, oil, air, gas and other media.
  • Applicable to different temperatures and pressure levels below 6.4MPa, corrosion resistance and other medium pipelines.





Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator 0

Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator 1
